Wheel loader engine cover
Large curved engine cover with side openings and an internal support structure, designed for PDCPD-RIM from the start.
PartEngine cover
EquipmentWheel loader
Our scopePart structural design
Mold cases
Molds we have designed and built
A selection of PDCPD-RIM projects. Customer names are withheld; more detail is available under NDA.
Excavator hood with CAE check
Stiffness analysis of a PDCPD engine hood before tooling. Maximum deflection, measured at the door handle under the longitudinal load case, was 2.45 mm against a 25 mm failure condition.
PartEngine hood
EquipmentExcavator
Our scopeCAE analysis
Exterior panel mold
Mold for a long PDCPD exterior panel, shown assembled and ready for trial.
PartExterior panel
EquipmentVehicle exterior
Our scopeDesign, build
Aerial work platform cover

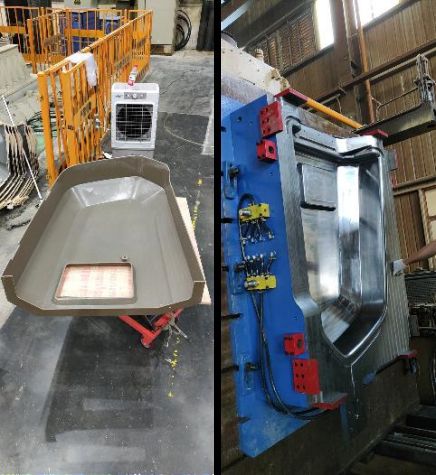

Deep cover part for an aerial work platform, shown next to its mold after trial molding.
PartCover
EquipmentAerial work platform
Our scopeDesign, build, trial
Bus exterior trim

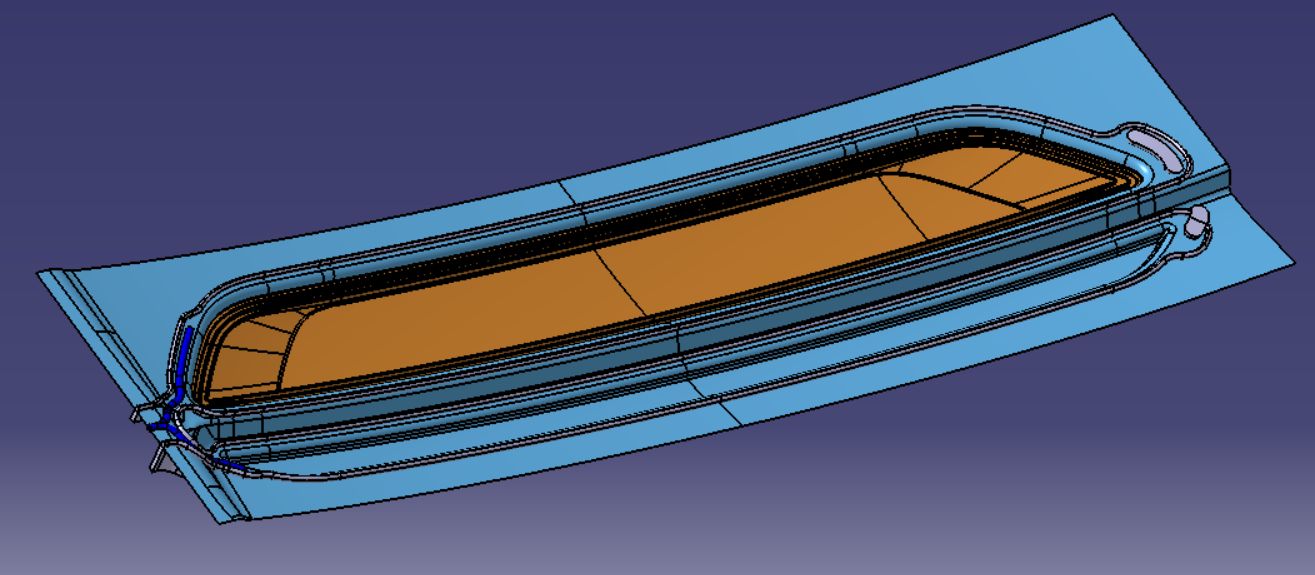

Parting surface and sealing groove designed around a long, narrow trim part, with overflow channels to control flash.
PartExterior trim
EquipmentCity bus
Our scopeMold design
Repair and modification of existing molds
We also take over existing PDCPD molds: revised gates and vents, added core pulls, and repaired cavities for molders whose original toolmaker is no longer available.
PartVarious
EquipmentAgricultural and construction
Our scopeMold modification
Have a part in development? Send it for a free DFM review. Contact us.
